Vulcan Industrial Line

The eco-friendly anti-scale system for industrial applications



Industrial Applications:

Cooling Towers, Heat Exchangers,
Aluminium Industry, Big Buildings,
Chemical Manufacturing, Car Industry,
Injection Moulding, Textile Industry,
Lumber Industry, Printing Industry,
Rubber Production, Hospitals,
Food Production, Refineries,
Waste Water Treatment

Industrial applications goes through a large quantity of water on a daily basis. The Vulcan-Impulse-Technology treats the water with special electronic impulses that take away the adhesive power of the scale. Scale is simply washed away with the water as a fine powder. Vulcan provides a salt-free and chemical-free solution for all types of scale-related problems in many industrial applications.

The Industrial Line units treat pipe diameters up to 40″ and have been designed to provide solutions for all kind of industries. The customized adjustment to the pipe diameter and pipe material is based on 10 different system-integrated programs.

The Commercial Line units treat pipe diameters up to 6″ and have been designed to perfectly meet the requirements of small and large commercial facilities. These programmable units allow for individual adjustment according to the materials and diameters of the pipes.

Vulcan industrial line

Cooling Towers

As scale does not evaporate with water, it quickly accumulates in the towers and clogs up the system. This causes malfunctioning and high expenses for maintenance. Vulcan achieves a significant reduction of scale deposits. Bleed water is no longer toxic and bacterial contamination is minimized. In addition, with Vulcan, the cooling tower can be operated at higher cycles of scale concentration, minimizing water usage.



Vulcan heat exchanger

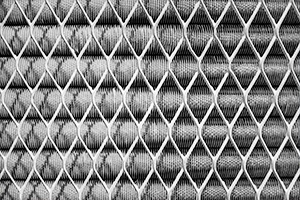

Heat Exchangers

When water is heated with oil, gas, electric or solar heating technologies scale settles on the heating elements and heat exchangers. The loss of energy due to the less efficient or blocked heat transfer is tremendous and the heat transmission coefficient decreases. Vulcan helps to reduce the scaling, and water tanks in the primary and secondary circuit will need less cleaning. The frequency of cleaning periods can be extended.

Hospitales y Edificios Grandes

Los hospitales y edificios grandes usan una gran cantidad de agua diariamente. Los descalcificadores traditionales a base de sal producen agua rica en sodio la cual no es recomendable en húespedes ancianos y pacientes. Vulcan protege el sistema de tuberías y electrodomésticos mientras que mantiene la composición original, saludable del agua.





Industrial LINE | Vulcan S150

Vulcan Anti-Scale System for big commercial applications and industries

Weight: 6kg

Pipe Diameter: 4″ – 8” (100 – 200 mm)

Max.capacity: 180 m³/h (790 gpm)

Voltage: 36V

Wattage: 2.5 watts

Impulse bands: 6 x 8 m (6 x 26′ 3″)

Band width: 20 mm (0.8″)

Dimensions: 230/150/40 mm (9.1/5.9/1.6″)

Frequency Range: 3 – 32 kHz

Required space: ~ 1800 mm (~71″)

Programs: 10

INDUSTRIAL LINE | Vulcan S250

Vulcan Anti-Scale System for big commercial applications and industries

Weight: 14 kg

Pipe Diameter: 4″ – 10” (100 – 250 mm)

Max.capacity: 350 m³/h (1540 gpm)

Voltage: 36V

Wattage: 2.75 watts

Impulse bands: 8 x 10 m (8 x 32′ 9″)

Band width: 20 mm (0.8″)

Dimensions: 280/200/50 mm (11.0/7.9/2.0″)

Frequency Range: 3 – 32 kHz

Required space: ~ 2500 mm (~99″)

Programs: 10

INDUSTRIAL LINE | Vulcan S350

Vulcan Anti-Scale System for big commercial applications and industries

Weight: 17 kg
Pipe diameter: 6″ – 14” (150 – 350 mm)
Max. capacity: 500 m³/h (2200 gpm)
Voltage: 36 V
Wattage: 2.75 Watt
Impulse bands: 8 x 20 m (8 x 65′ 7″)
Band width: 20 mm (0.8″)
Dimensions: 280/200/50 mm (11.0/7.9/2.0″)
Frequency range: 3 – 32 kHz
Required space: ~ 3400 mm (~11′ 2″)
Programs: 10

INDUSTRIAL LINE | Vulcan S500

Vulcan Anti-Scale System for big commercial applications and industries
Weight: 21 kg
Pipe diameter: 8″ – 20” (200 – 500 mm)
Max. capacity: 800 m³/h (3520 gpm)
Voltage: 36 V
Wattage: 3.25 Watt
Impulse bands: 10 x 30 m (10 x 98′ 5″)
Band width: 20 mm (0.8″)
Dimensions: 310/220/50 mm (12.2/8.7/2.0″)
Frequency range: 3 – 32 kHz
Required space: ~ 4500 mm (~14′ 9″)
Programs: 10

INDUSTRIAL LINE | Vulcan X-Pro 1

Vulcan Anti-Scale System for industries
Weight: 40 kg
Pipe diameter: 20″ – 30” (500 – 750 mm)
Max. capacity: 800 m³/h
Voltage: 36 V
Wattage: 3.75 Watt
Impulse bands: 12 x 25 m (12 x 82′)
Band width: 40 mm (1.6″)
Dimensions: 340/240/50 mm (13.4/9.4/2.0″)
Frequency range: 3 – 32 kHz
Required space: ~ 5600 mm (~18′ 5″)
Programs: 10

INDUSTRIAL LINE | Vulcan X-Pro 2

Vulcan Anti-Scale System for industries
Weight: 81 kg
Pipe diameter: 32″ – 40” (800 – 1000 mm)
Voltage: 36 V
Wattage: 3.75 Watt
Impulse bands: 12 x 50 m (12 x 164′)
Band width: 40 mm (1.6″)
Dimensions: 340/240/50 mm (13.4/9.4/2.0″)
Frequency range: 3 – 32 kHz
Required space: ~ 8200 mm (~26′ 11″)
Programs: 10
